TIM'S SUBARU SELECT MONITOR 2 (SSM2) PAGE

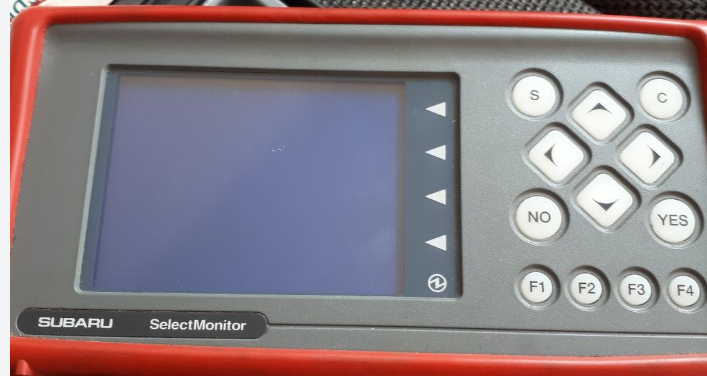

The Subaru Select Monitor 2 (SSM2) is the Official Factory diagnostic computer that dealers use to talk to the ECU and other computers in your Subaru car. It makes finding "Check Engine" light errors fast and easy.

With the dropping prices of the units on like ebay etc.. quite a few people with Subaru cars have been buying and using these units at home. (Which incudes me)

HERE IS A QUICK MANUAL ON THE SSM2 UNIT

SSM2 EPSON DPU-414 PRINTER SETUP / CABLE

This is not a hard cable to make. It allows you to print out reports, Fault lists etc from the SSM2 unit. It uses a RJ11/12 6Pin 6Contact (6P6C) Plug on the SSM2 end. And a DB9 Male connector on the printer end.

SSM2 DIAGNOSTIC CARTRIDGES AND PART NUMBERS

INTRODUCTION VIDEO TO THE SSM2
